.JPG "Hydraulic Model Studies for Pump and Power Intake System")
.jpg "Hydraulic Machinery - Numerical Simulation Laboratory (HM-NSL)")
.JPG "Gravimetric Calibration laboratory")
The Hydraulic Machinery, Cavitation and Instrumentation Division of CWPRS carries out experimental and research studies related to Hydraulic Machines and Flow in water conductor systems. Studies include performance evaluation of hydro power plants, Field investigations for flow measurement, Surge analysis of lift irrigation schemes, Model studies for verification of Hydraulic performance evaluation of pump intakes, Numerical studies for intake systems and hydro turbines, desk studies for development of hydraulic designs of pumping systems.
This division is also engaged in providing the instrumentation required for physical model study to facilitate measurement of hydraulic parameters such as water level, velocity, discharge, temperature, salinity, flow pattern, producing of tides and random sea waves, river flow etc. It also caters to the Data Acquisition System (DAS) required for measurement and control of hydraulic parameters in the model as well in the proto. Further, this division is carrying out Hydrographic Survey of reservoirs to evaluate the existing storage capacity of the reservoirs and deposition of silt.
There is a dedicated Pump House section which serves as a crucial hub within CWPRS, acting as the central axis for delivering water to facilitate carrying out scaled physical model studies of national/international projects handled by CWPRS. Furthermore, the Pump House section actively engages in client-sponsored projects focusing on “surge analysis of water conducting systems”, particularly for hydropower and lift irrigation schemes. Over 30 Nos. lift irrigation projects have been undertaken for the Government of Maharashtra, aimed at mitigating water hammer effects within the water conducting systems. These endeavour’s highlight our commitment to ensuring the stability and efficiency of water infrastructure crucial for sustainable development and resource management.
Broad areas of expertise

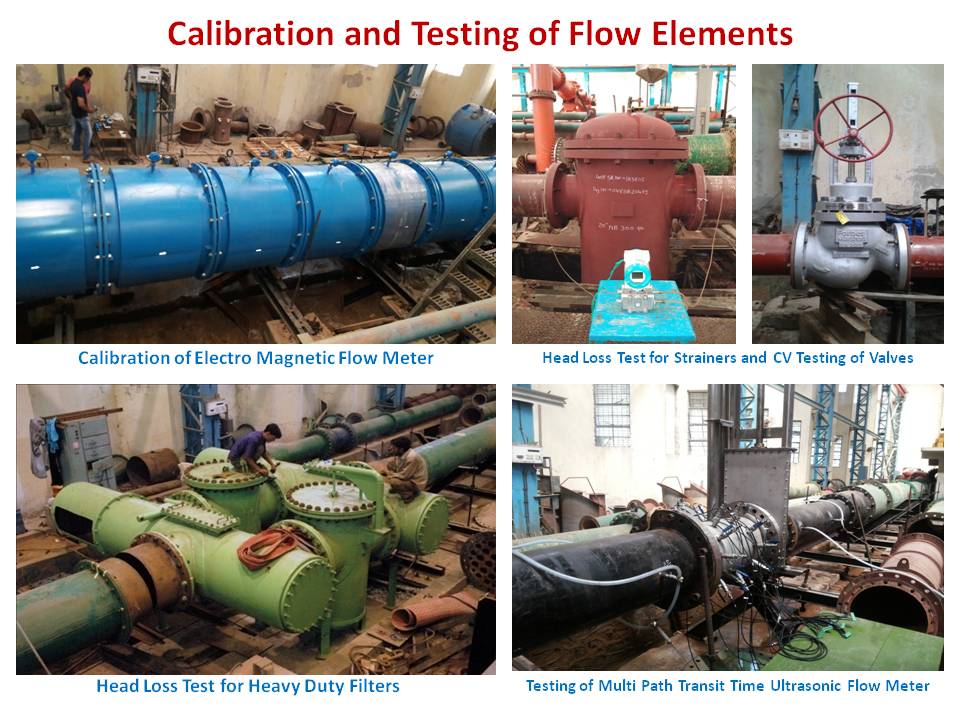

- Calibration of closed conduit flow meters.
- Assessment of head loss across filters.
- Performance evaluation submersible pumps.
- Field investigations for flow measurements.
- Field testing of hydro turbines and pumps.
- Pumping system design: optimisation.
- Pump sump model studies for flow condition improvement.
- Upgrading of existing hydro power plants.
- Surge Analysis of Lift Irrigation Scheme (LIS).
- Computational Fluid Dynamics (CFD) studies for pump intakes & Hydro power systems.
- Hydrographic Survey of reservoir/lakes.
- Satellite Derived Bathymetry.
- Inspection & Testing of Telemetry Installations.
- Design and Development of required HI systems for various models/proto.
- Artificial Intelligence (AI), Machine Learning(ML) & Neural Networks.
- Expertise in the field of pumping systems and excel in the in-house operation and maintenance of pumping systems, managing a spectrum from 5 HP to 350 HP with precision and efficiency.
- Designing, selecting, and framing technical specifications for pumps, specifically tailored for diverse river and coastal hydraulic model studies.
- Specialize in the meticulous design and optimization of pipeline networks, prioritizing economic power consumption without compromising on performance.
- Experience includes operating and maintaining two 1MLD capacity sand bed filtration plants, crucial for supplying potable drinking water to colony residents and office staff, ensuring a seamless and reliable water supply.
- In-house capabilities in troubleshooting pumps and RMU of pumping systems, leveraging energy-efficient techniques for sustainable operations.
- Engaged in mathematical model studies, particularly focusing on surge analysis in water conduction systems within hydro power and lift irrigation schemes.
Significant Contributions

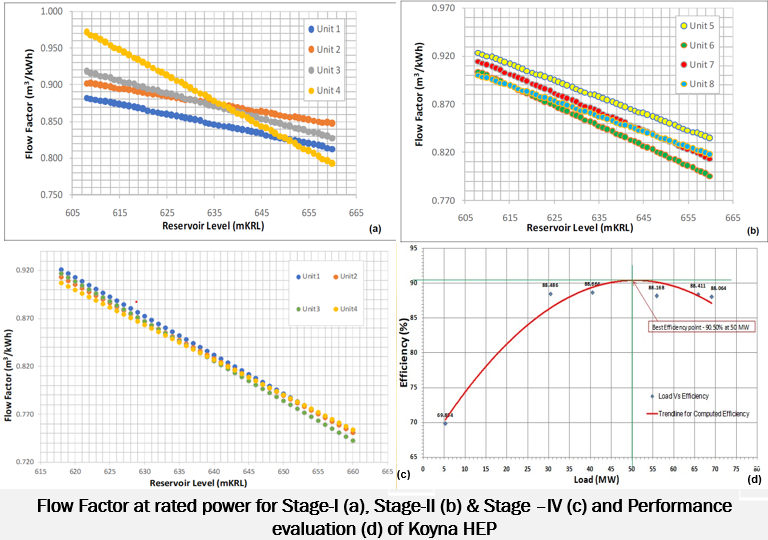

- Field investigation carried out for all turbine units (18 Nos) of Koyna HEP; Head loss test in the Water Conductor System of Bairasiul Power Station, Chamba and Performance evaluation of Salal Hydro Electric Project, J & K for NHPC.
- Performance evaluation and flow measurement of 4 x 75 MW Hydro Power Plant, Ukai Dam.

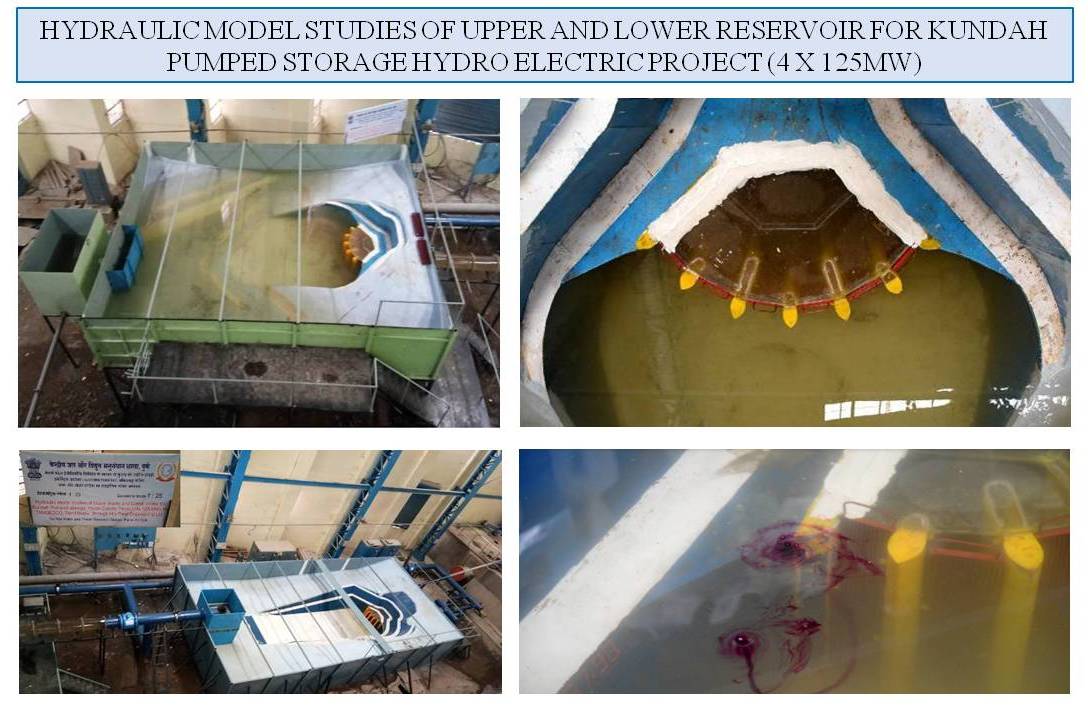

- Hydraulic model studies for Kundah Pumped Storage Plant (4 X 125 MW) of Tamil Nadu Generation Corporation (TANGEDCO).
- Surge analysis for raising mains of water supply project, Public Health Engineering Department (PHED), Pokaran, Rajasthan.
- Installed Discharge control system at Poondi, Tamil Nadu.
- Installed Automatic Tide Generation system at Kolkatta Port Trust, Kolkata, Gujarat Engineering Research Institute (GERI), Gujarat.
- Carried out hydrographic survey of more than 20 reservoir all across India viz., Indira Sagar, Rihand dam, Mullaperiyar, Yashwant Sagar Dam, Kadana dam, Shetrunji dam etc.
- Carried out dam instrumentation work of major dams including Indira Sagar Dam, Polavaram Dam, Ukai, Tungabhadra, Hirakud, Sardar Sarovor Dam etc.
- On an average annually about 300 flow elements received from various irrigation, power projects and water supply schemes for State Government Departments like KBJNL, WRD, Municipal Corporations, Delhi Jal Board and PSU’s like NTPC, BHEL and private organisations are calibrated and tested.
- Optimization of pipeline networks in filtration plants has successfully slashed power consumption by 50%, showcasing efficiency and sustainability.
- Over the past seven years, pump house section delivered more than twenty client-sponsored projects, all while managing the demanding schedule of essential service divisional work.
Gravimetric Calibration laboratory:

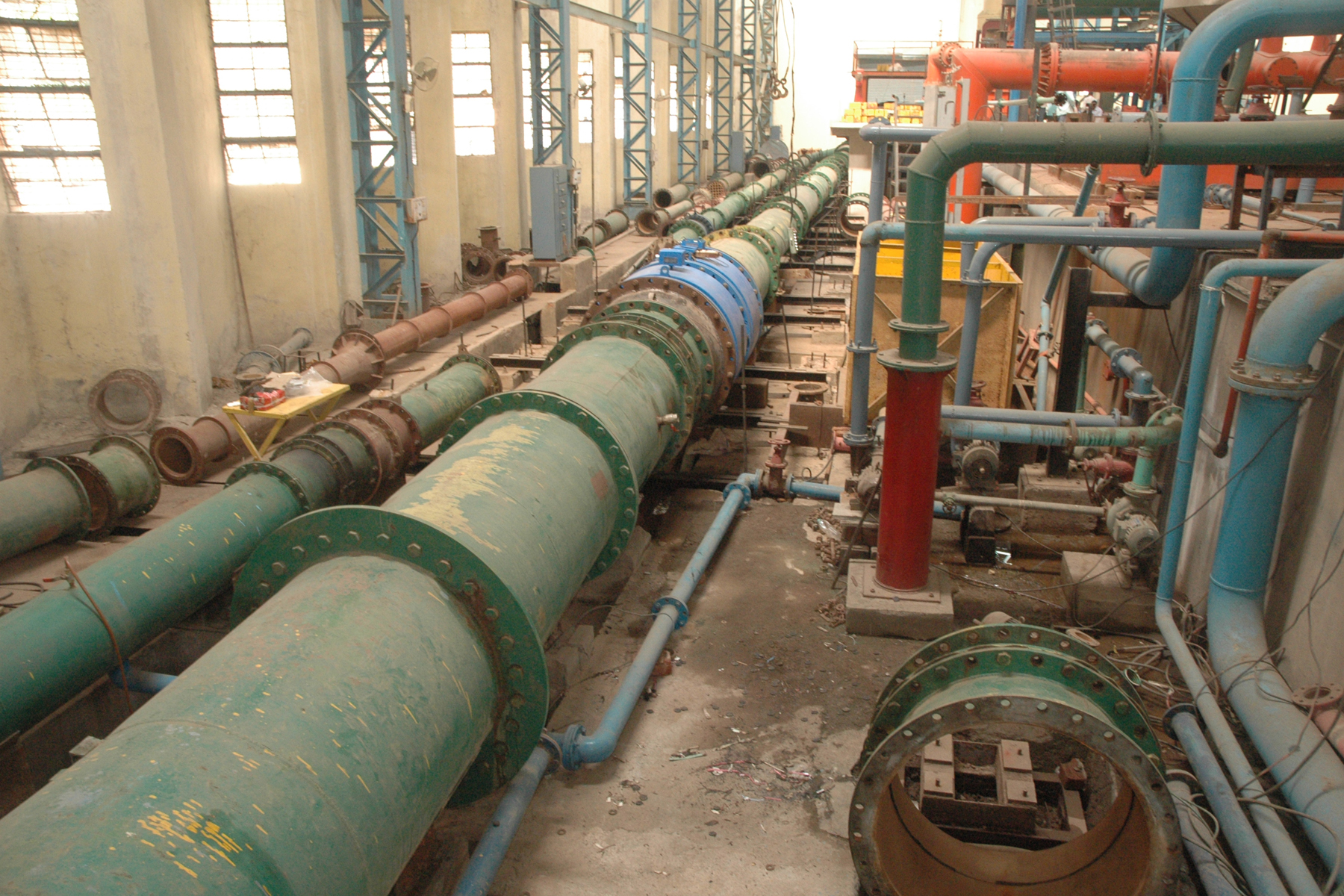

Gravimetric calibration facilities available conform to ISO 4185 for calibration of flow meters, testing of filters and ascertaining valve characteristics. The principle employed in the gravimetric calibration facility is to accurately weigh the quantum of water passing through the flow meter under calibration at constant flow rate in a precisely known interval of time. The ratio of weight to time is the primary measure of flow rate against which the flow element is calibrated.
| Gravimetric Calibration facility |
| Maximum line size : 1000 mm NB |
| (Extendable up to 1200 mm NB) |
| Maximum flow rate :2 m3/s |
| Calibration Uncertainty :+/- 0.3 % |
|
Weighing tank : 100 tonnes |
Volumetric Calibration laboratory:
Volumetric calibration facilities available conform to ISO 8316 for performance testing of submersible pumps, calibration of flow meters, testing of filters, ascertaining valve characteristics. The principle employed in the volumetric calibration facility is collection of water in a known volume of tank and the time taken to fill the same. The ratio of volume to time is the primary measure of flow rate against which the flow element is calibrated.
| Volumetric Calibration facility |
| Maximum line size 250 mm NB |
| (Integrated with Submersible pump test rig) |
| Maximum flow rate : 0.083 m3/s |
|
Calibration uncertainty : +/- 0.5 % |
| Capacity of volumetric tank : 3.862 m3 |

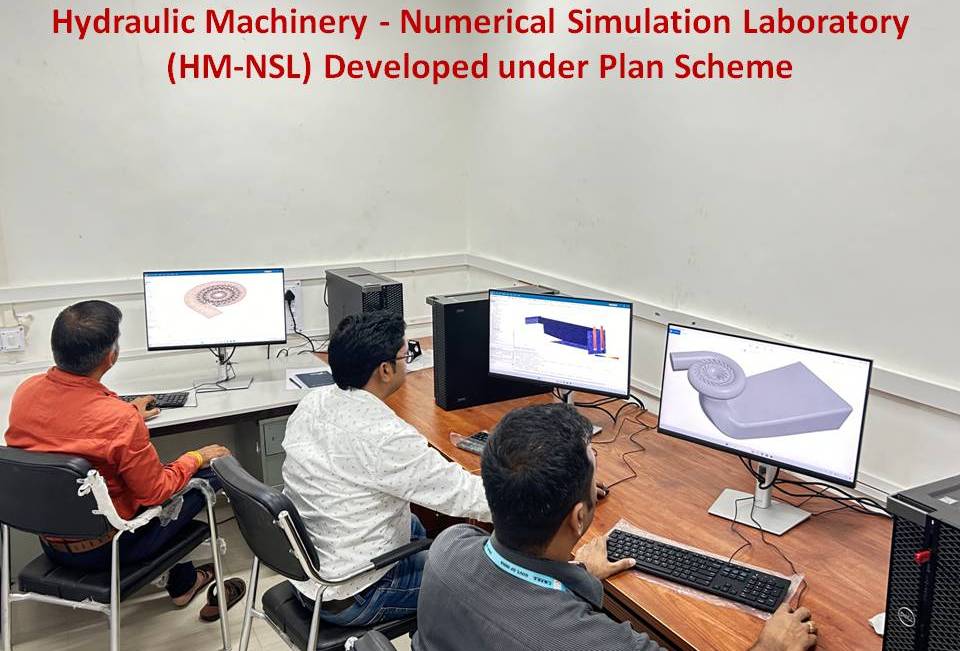

Hydraulic Machinery - Numerical Simulation Laboratory (HM-NSL):
| S.No | Numerical Codes | Study Details |

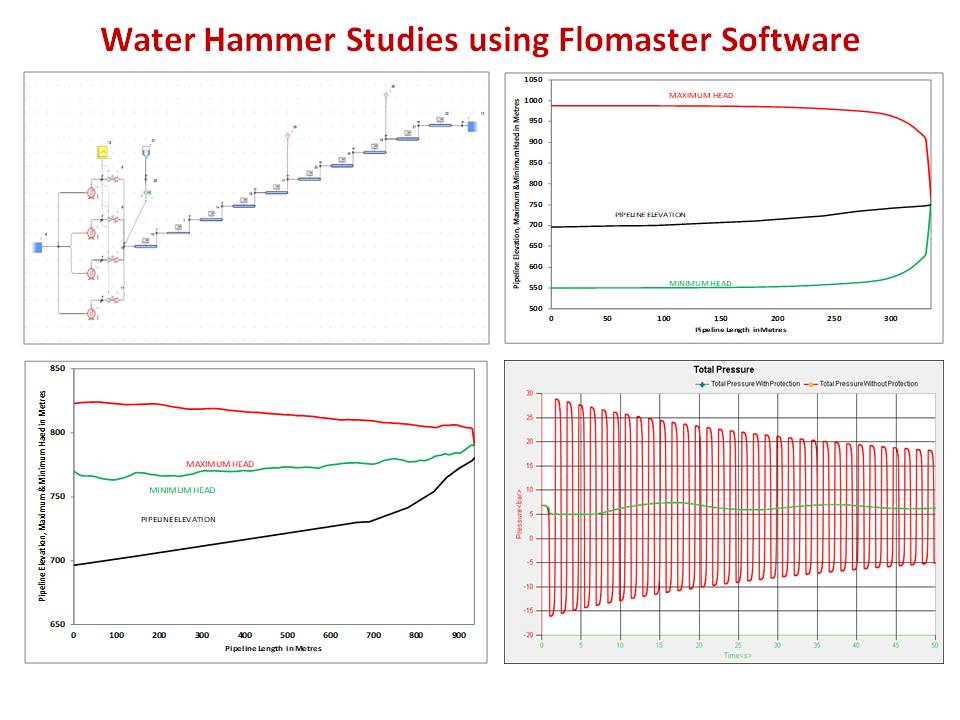

| 1 | Flomaster | 1D Numerical simulations for Surge analysis for Water hammer studies, Design of Surge protection Systems and Head loss prediction in piping systems. |

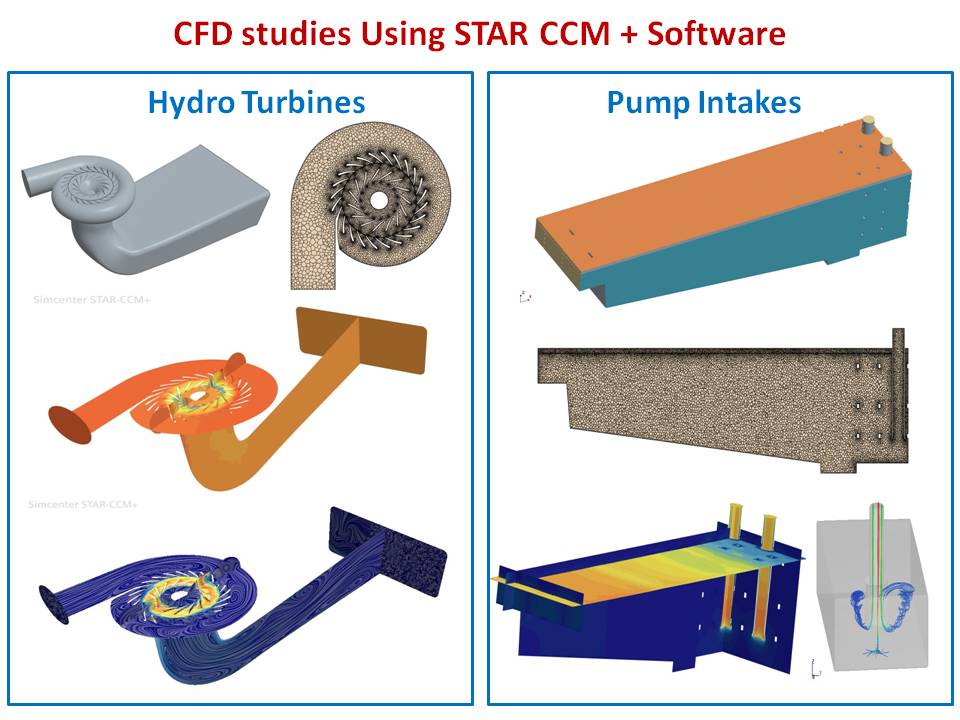

| 2 | Star CCM+ | 2D and 3D CFD Simulations / Numerical Studies for Hydraulic systems like pump intakes for water supply projects and power intakes & water conductor systems of hydropower projects. |
| 3 | Solid Edge | 3D CAD modelling of Hydraulic Machineries and water conductor systems, Pump and Power Intakes. |
Echo sounder Read out unit with recorder
The echo sounder sensor is fixed in the boat with its sensor immersed in the water and is connected to read out unit which will show the water depth as the boat is moved in the reservoir area. These depth values displayed on the read out unit can also be recorded on the chart provided with the echosounder read out unit. This depth data along with GPS position data given by DGPS unit is recorded in the Laptop and through navigation software we can compute the present reservoir volume.
Telemetry Testing
Very large no of Automatic Weather Stations (AWS), Surface Water Stations, Ground Water Stations, etc are already being installed or in the process of installation by State and/or Central Implementing Agencies under National Hydrology Project(NHP). Telemetry Installations for GSM/GPRS communication mostly include Cable & Antenna. For maximum data reception availability, parameters such as cable faults, Voltage Standing Wave Ratio (VSWR), Impedance etc., are required to be checked for proper & efficient transmission and reception of data. For laboratory and Field testing of above mentioned Telemetry parameters, CWPRS developed Telemetry Testing Facility is useful for testing Telemetry installations installed under NHP as well as for all across India.
INST-HM_lab 1
 sensor demonstration.JPG)
Field studies for hydraulic performance on turbines of Hydro Power Plants and various water conductor systems
.jpg)
